EGODRIFT ·SKU 11896

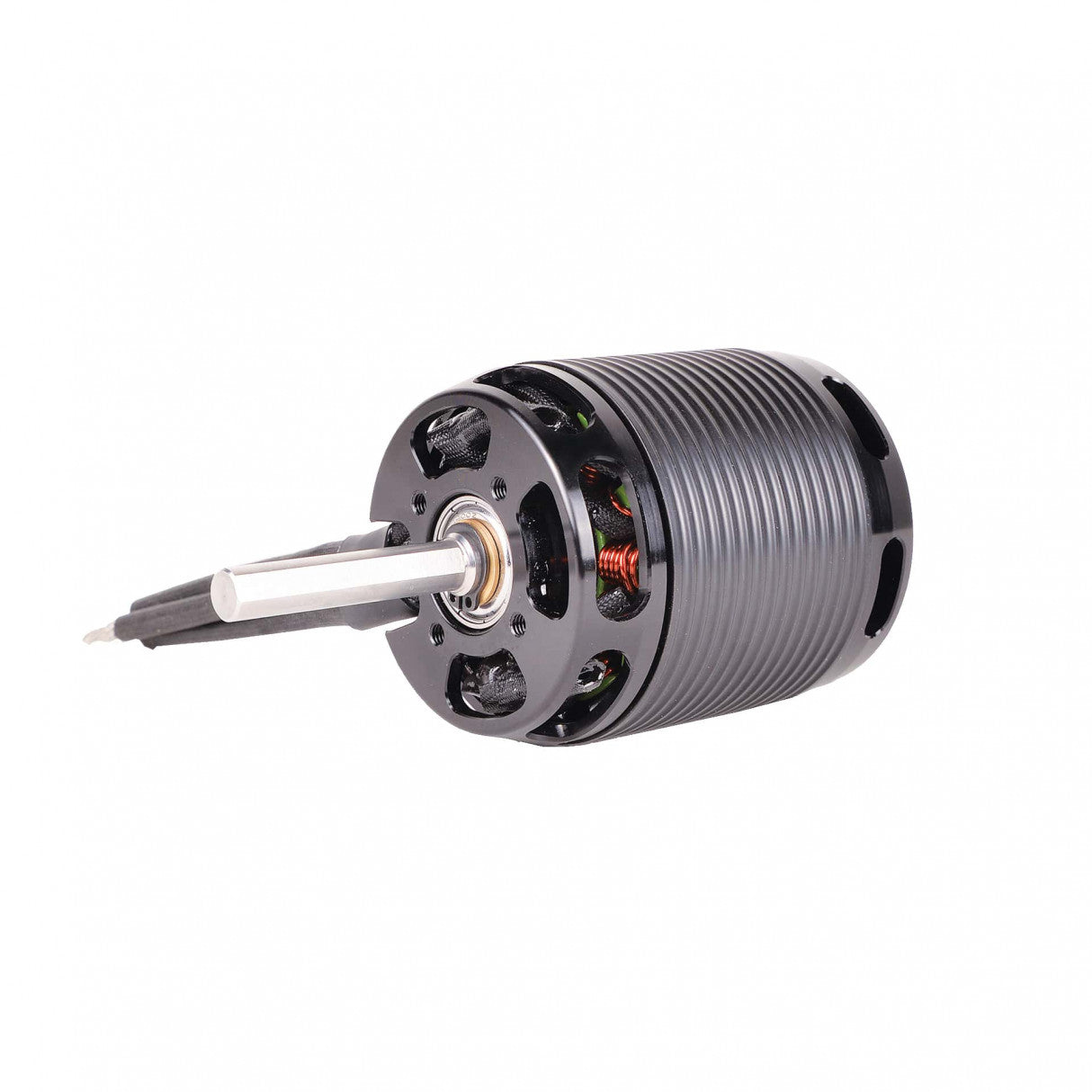

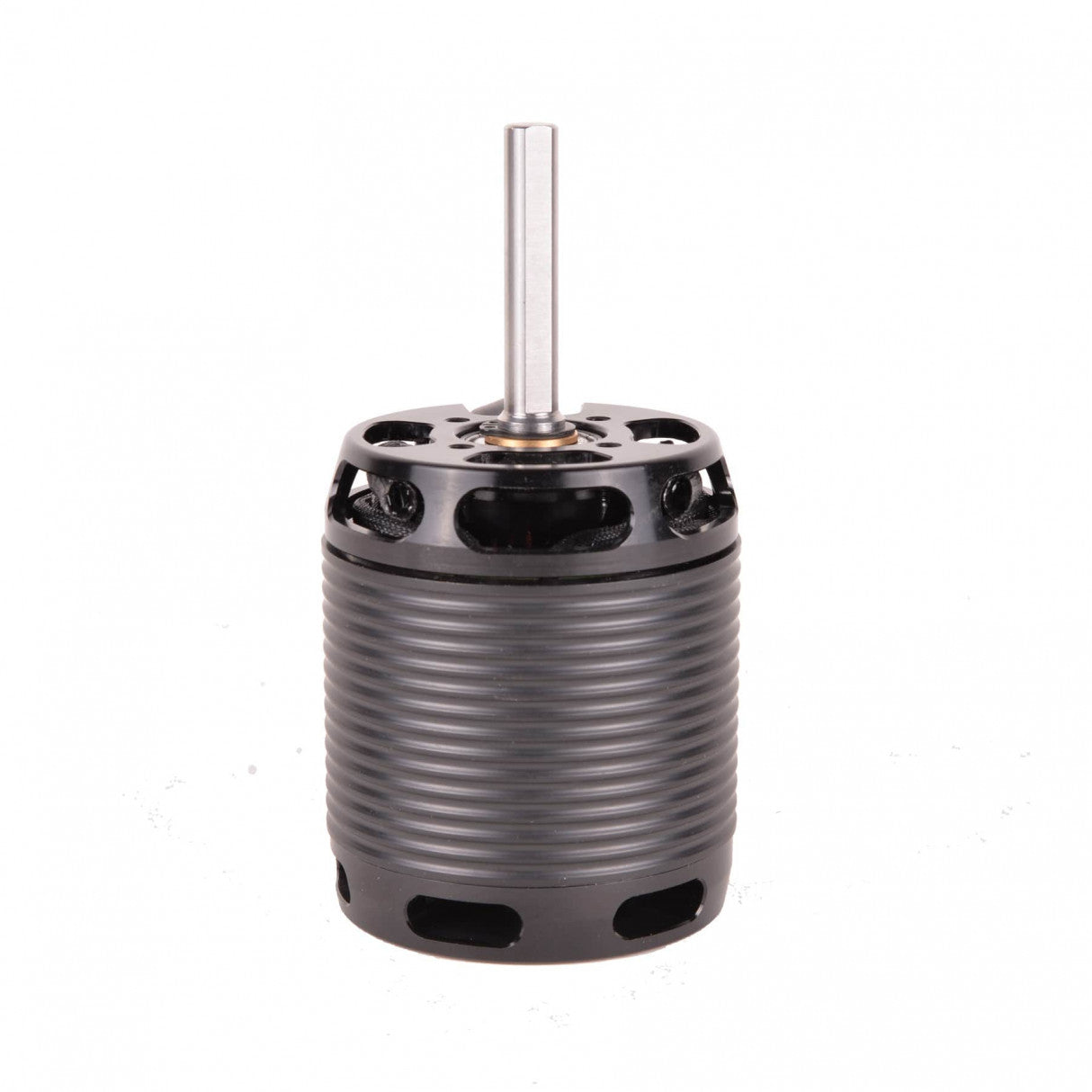

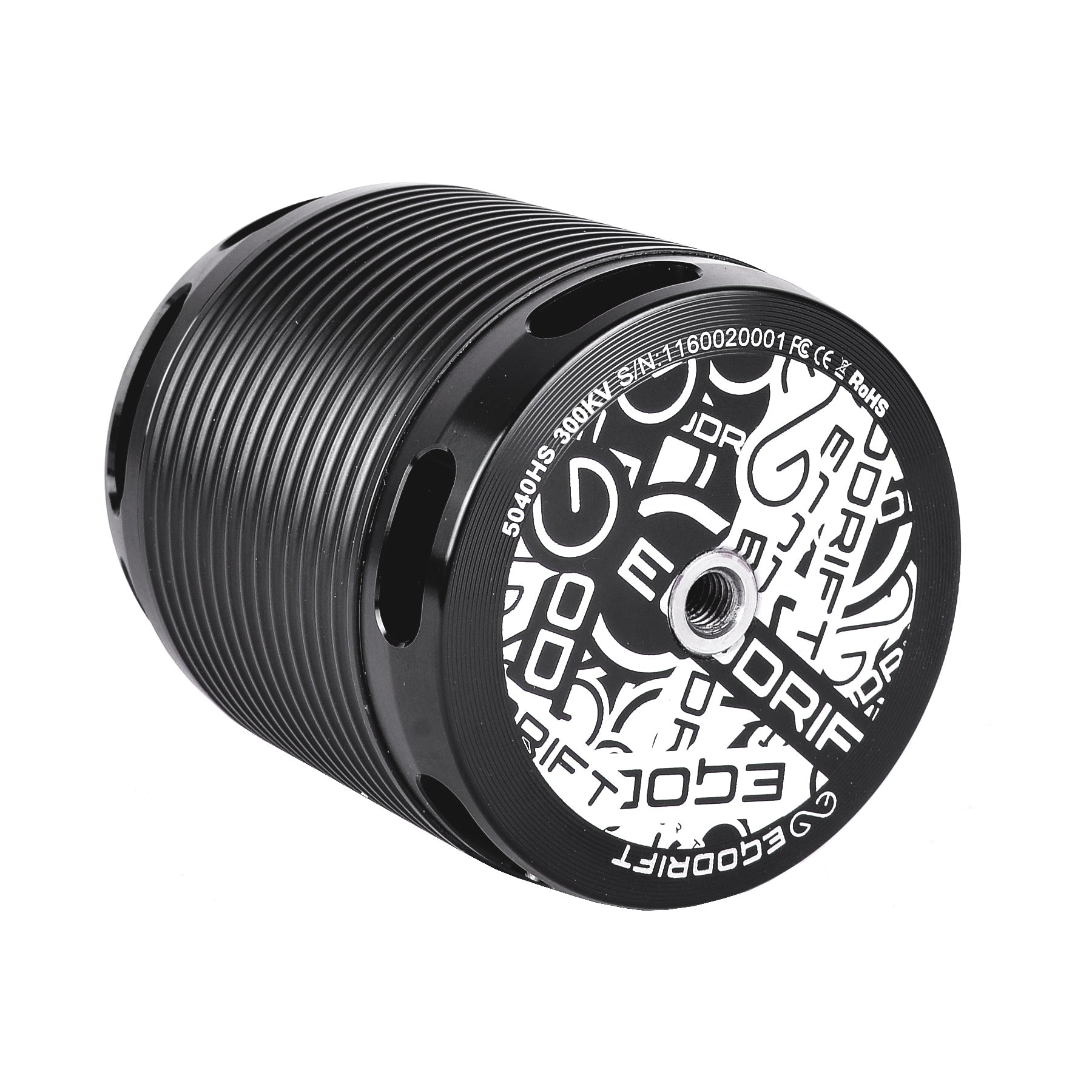

Tengu 5040HS
Tengu 5040HS
No reviews
The Tengu 5040HS (formerly Beta 5040HS) is our largest motor currently available within the rc motor range and suited for large heli and fixed wing projects, as well as speed flying.
Regular price
$659
Regular price
Sale price
$659
Usually ships within 3–5 days
We'll be in touch with you to ensure the perfect wind for your setup.
If you already have a target Kv in mind, please enter it below:
Quantity
Couldn't load pickup availability
Description
Description
Delivering upwards of 10kW constant power, the massvie Tengu 5040HS is aimed at heavy multi-head scale helicopters with up to 3m rotor diameter, hardcore 800 class 3D and speed machines running on 14S, as well as large warbird and IMAC type fixed wing aircraft.

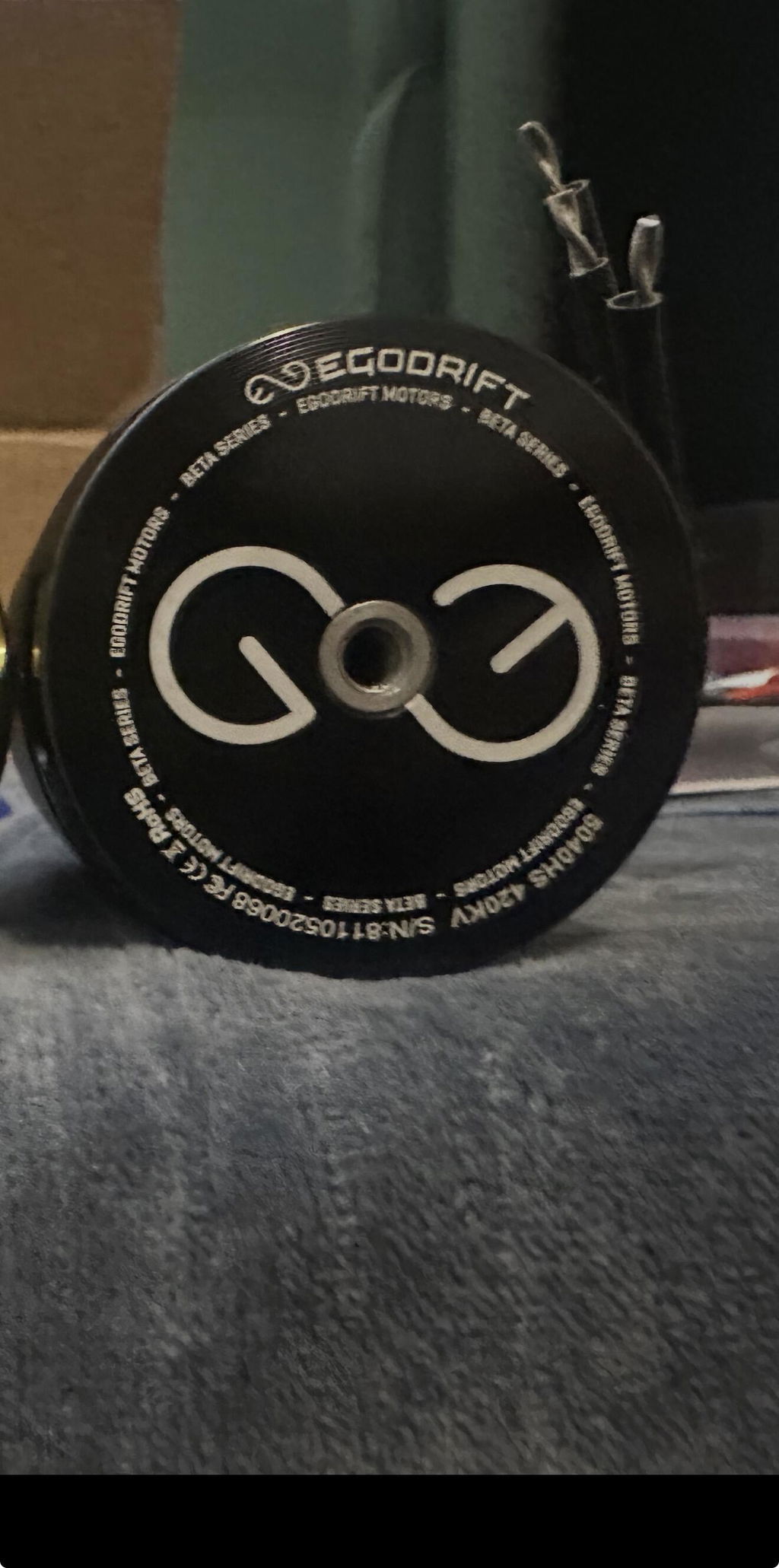

Weighing in at only 750g, the Tengu 5040HS (previously known as Beta 5040HS) is a mere 50% heavier than our 4730/4530 sized models, but offers nearly double the stator volume - delivering huge amounts of torque for demanding applications.
Specifications
Specifications
Manufacturer:
All the products in our store are manufactured by us with great care. You knew that, but we get why you clicked the tooltip - and thanks.
EGODRIFT
Stator size:
The stator size of our motors is indicated as a combined number, where the first two digits refer to the stator width, and the last two digits refer to the stator height.
So a 4730 stator size refers to a motor with a stator width of 47 mm, and a stator height of 30 mm.
On large industry models with a stator diameter in exess of 100 mm (like our Jetstream Heavy Duty Series, these numbers are seperated by a dash, like 100-30 or 150-50.
5040
Motor configuration:
The motor configuration gives you information about the number of stator arms/slots (N) and magnetic poles (P). So a 12N10P denomination refers to a motor with 12 arms and 10 poles.
12N10P
Motor weight:
Motor wire:
Motor Kv:
Mounting hole pattern:
This information includes the number of mounting holes, their respective thread size, and the bolt circle on which the holes are placed — shown as the number in brackets.
Example 1: "4x M4(30)"
This means that the motor features four M4 mounting holes, placed on a 30 mm bolt circle.
For extended compatibility with a wide range of models, some of our motors feature a combination of different mounting hole sizes and/or bolt circles. In this case, the information is shown as follows:
Example 2: "2x M4(30) + 2x M3(25)"
This means that the motor features two M4 mounting holes placed on a 30 mm bolt circle, and two M3 mounting holes placed on a 25 mm bolt circle.
Don’t worry if only two of the mounting holes, opposite to each other, line up with your mounting bracket or motor plate. Using only two screws is perfectly fine — but as with any metal thread, always use threadlocker.
Laser Design:
Stator diameter:
50 mm
Stator height:
40 mm

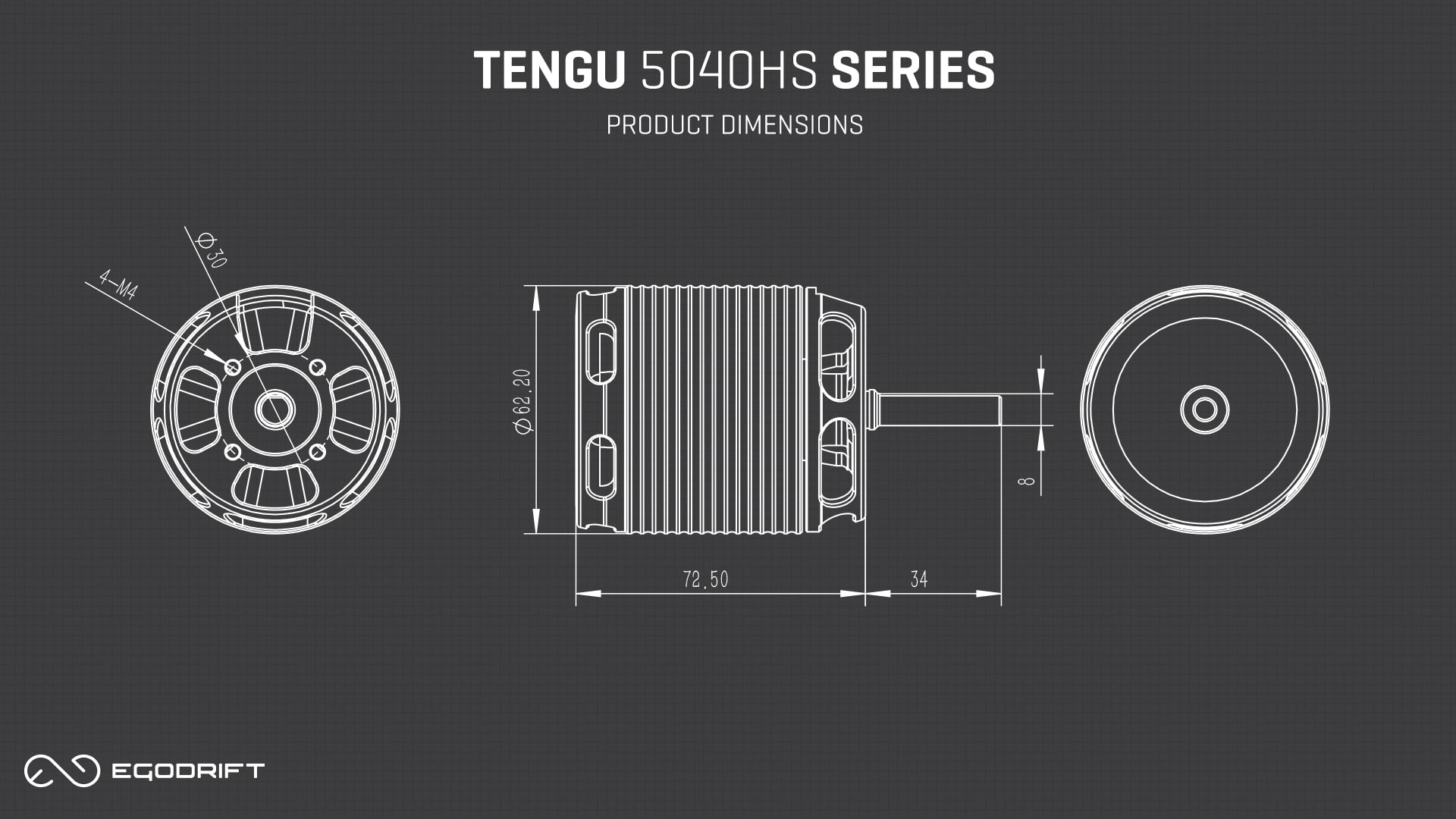

Body length:
This number refers to the legth of the motor body excluding the shaft, so from the mounting plate to the top of the rotor.
72.5 mm
Body width:
This number refers to the width (maximum extension from side to side) of the motor.
When checking the clearance in your frame, this is the number to compare it against.
62.2 mm
Shaft diameter (external):
Shaft length (external):
Idle current:
Maximum current:
Maximum power:
Internal resistance:
Shaft Compatibility
Shaft Compatibility
Tengu 5040HS - 300Kv / 8x34mm
$659.00 USD
In stock
What's in the box
Box contents for
Tengu 5040HS 300Kv / 8x34mm
- 1 x BETA Tengu 5040HS / 300kV Motor - 8x34mm
- 3 x Gold Plated Amass Connector, Male
- 3 x Gold Plated Amass Connector, Female
- 4 x Mounting Screws
- 1x Bell securing screw
Please note that this item is shipped - very safely packed - without a box.
