EGODRIFT ·SKU 11770
Tengu 4530HT
Tengu 4530HT
The Tengu 4530HT/550kV is our most powerful 4530 motor available today and one of the strongest motor options for 700 sized helis.
Regular price
$459.99
Regular price
Sale price
$459.99
Usually ships within 1–2 days
We'll be in touch with you to ensure the perfect wind for your setup.
If you already have a target Kv in mind, please enter it below:
Quantity
Couldn't load pickup availability
Description
Description
Hand-wound EGODRIFT Tengu 4530HT (High Torque) Series brushless motor for 700-800mm class helicopters such as the SAB Goblin RAW, Kraken 700 or Black Thunder, XLPower Specter, Goosky RS7, Omphobby M7, Align T-Rex 700, Mikado Logo 700, or Gaui 700.
Officially rated at almost 13.5kW of peak power (and really delivering upwards of 14.5kW), the Tengu 4530HT/550kV is our most powerful 4530 motor available today and one of the strongest motor options for 700 sized helis. It and was developed with hardcore (MasterClass) competition pilots in mind, but is also the perfect fit for all 760-800 (stretch) kits, heavy and/or multi rotor head setups or true "power aficionados".
Please select the correct Kv version and external shaft length:
35mm fits XLPower, SAB Goblin, SoXos, Goosky, Omphobby (and most others) models
55mm is required for Align, Mikado and Gaui models.
Specifications
Specifications
Manufacturer:
All the products in our store are manufactured by us with great care. You knew that, but we get why you clicked the tooltip - and thanks.
EGODRIFT
Stator size:
The stator size of our motors is indicated as a combined number, where the first two digits refer to the stator width, and the last two digits refer to the stator height.
So a 4730 stator size refers to a motor with a stator width of 47 mm, and a stator height of 30 mm.
On large industry models with a stator diameter in exess of 100 mm (like our Jetstream Heavy Duty Series, these numbers are seperated by a dash, like 100-30 or 150-50.
4530
Motor configuration:
The motor configuration gives you information about the number of stator arms/slots (N) and magnetic poles (P). So a 12N10P denomination refers to a motor with 12 arms and 10 poles.
12N10P (10-pole)
Motor weight:
Motor wire:
Motor Kv:
Mounting hole pattern:
This information includes the number of mounting holes, their respective thread size, and the bolt circle on which the holes are placed — shown as the number in brackets.
Example 1: "4x M4(30)"
This means that the motor features four M4 mounting holes, placed on a 30 mm bolt circle.
For extended compatibility with a wide range of models, some of our motors feature a combination of different mounting hole sizes and/or bolt circles. In this case, the information is shown as follows:
Example 2: "2x M4(30) + 2x M3(25)"
This means that the motor features two M4 mounting holes placed on a 30 mm bolt circle, and two M3 mounting holes placed on a 25 mm bolt circle.
Don’t worry if only two of the mounting holes, opposite to each other, line up with your mounting bracket or motor plate. Using only two screws is perfectly fine — but as with any metal thread, always use threadlocker.
Laser Design:
Stator diameter:
45 mm
Stator height:
30 mm
Stator lamination:
0.15mm (+)

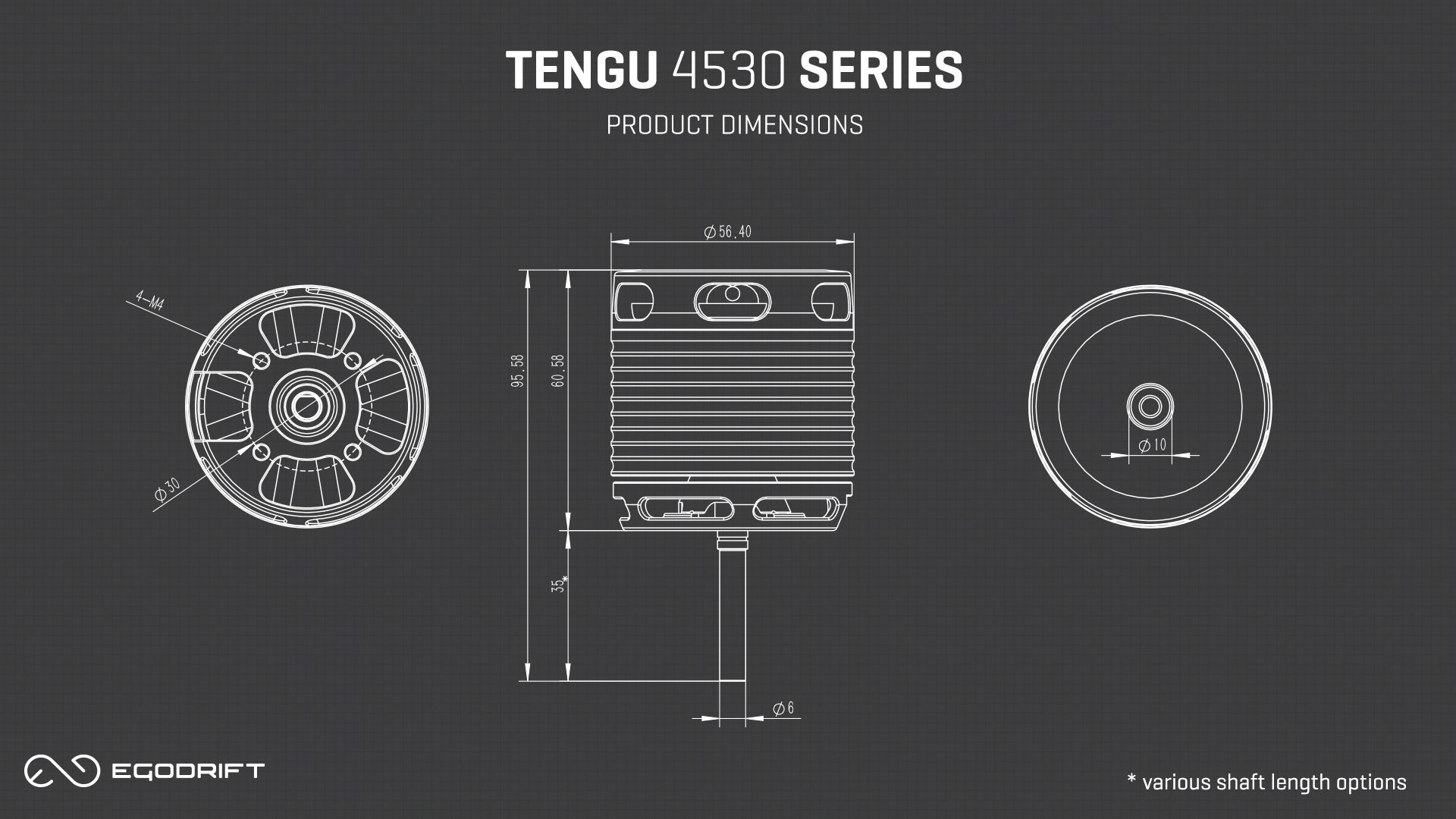

Body length:
This number refers to the legth of the motor body excluding the shaft, so from the mounting plate to the top of the rotor.
60.58 mm
Body width:
This number refers to the width (maximum extension from side to side) of the motor.
When checking the clearance in your frame, this is the number to compare it against.
56.4 mm
Shaft diameter (external):
Shaft length (external):
Idle current:
Maximum current:
Maximum power:
Internal resistance:
Shaft Compatibility
Shaft Compatibility
The standard 6x35mm shaft length option fits most modern 700 size helicopters such as:
- SAB (Goblin)
- Goosky
- OMPhobby
- SoXos
- XLPower
The longer 6x55mm shaft option is needed for:
- Mikado Logo
- Align
- Gaui
- Various scale mechanics
Tengu 4530HT - 550Kv / 6x35mm
$459.99 USD
In stock

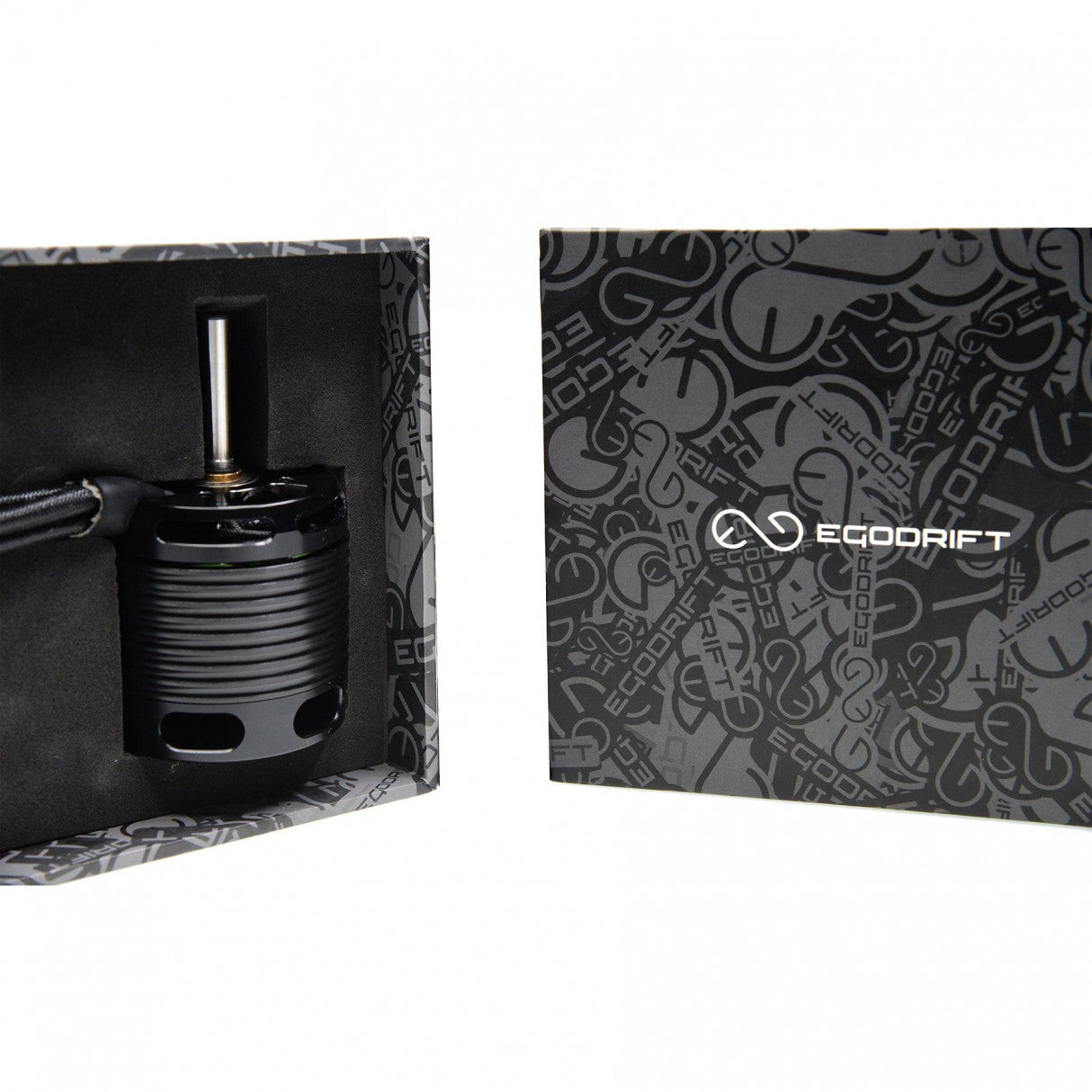

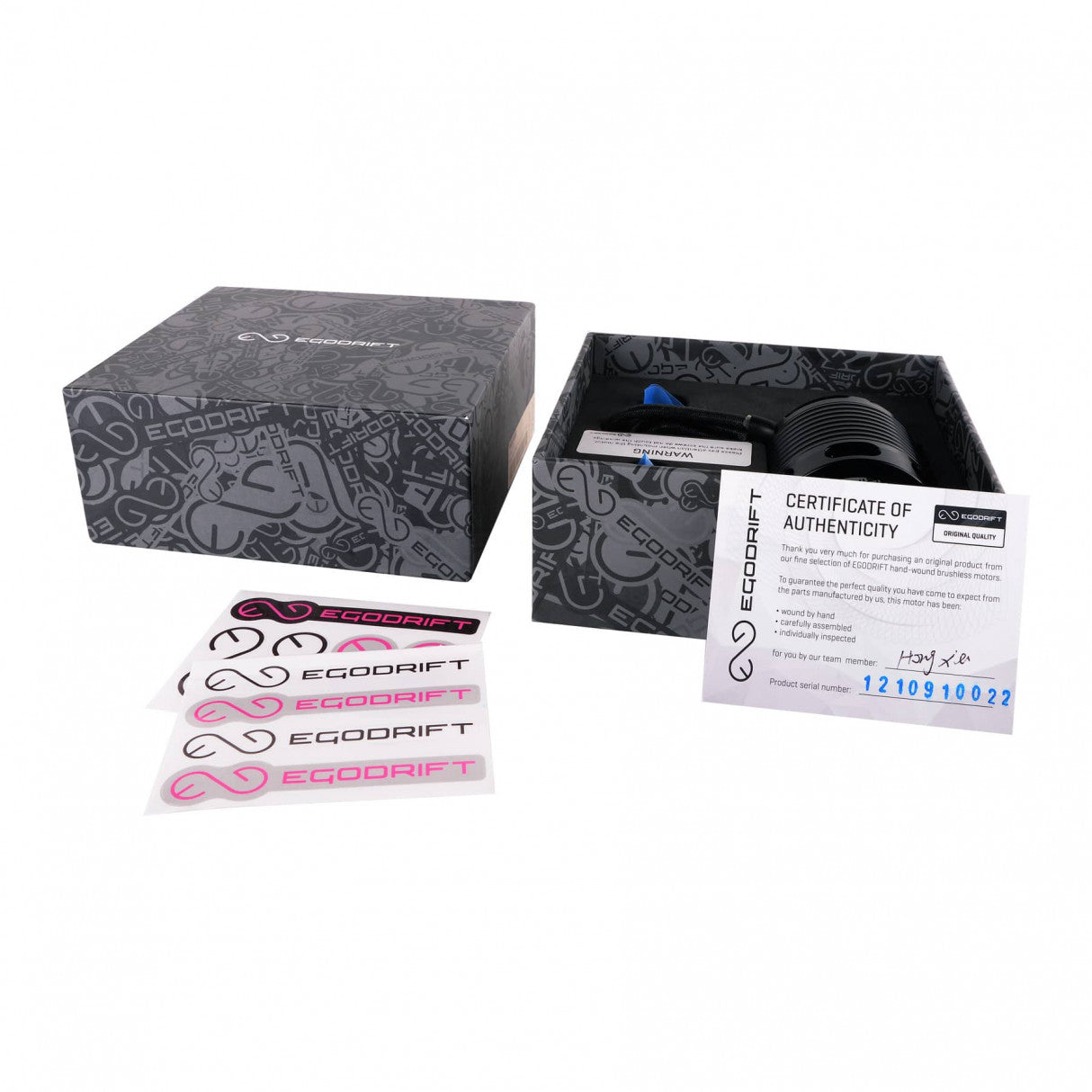

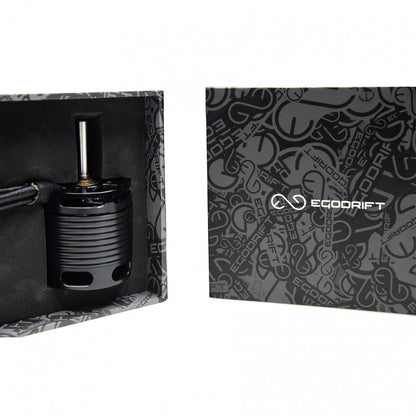

What's in the box
Box contents for
Tengu 4530HT 550Kv / 6x35mm
- Tengu 4530HT Motor / 550KV with 6x35mm shaft
- 3 Pairs Gold-Plated Amass Bullet Connectors
- Mounting screws (generic, please ensure fit to your model)
- Bell Securing / Shaft Replacement Aid Screw
- 2x EGODRIFT Decal Sheets
- Individual Certificate of Authenticity
