EGODRIFT ·SKU 11766
Tengu 4525HT
5 reviews
Where its bigger 4530HT brother was built for hardcore 3D, the Tengu 4525HT is the precision choice for lightweight 700 builds — and a great option for F3N. Its direct successor: the Tengu 4726EC Eclipse.
Regular price
$399
Regular price
Sale price
$399
Usually ships within 1–2 days
We'll be in touch with you to ensure the perfect wind for your setup.
If you already have a target Kv in mind, please enter it below:
Quantity
Couldn't load pickup availability
Description
Description
The Tengu 4525HT (High Torque) is our proven motor in the more compact 45-size: hand-wound on the 0.15mm stator platform that made our 45-size motors famous for their cool operating temperature, and a reliable choice for 700 size helicopters where you want 12S power in a lighter package. Where its bigger 4530HT brother was built for hardcore 3D, the 4525HT is the precision choice — and a great option for F3N flying, where clean, precise 3D counts for more than raw smack.

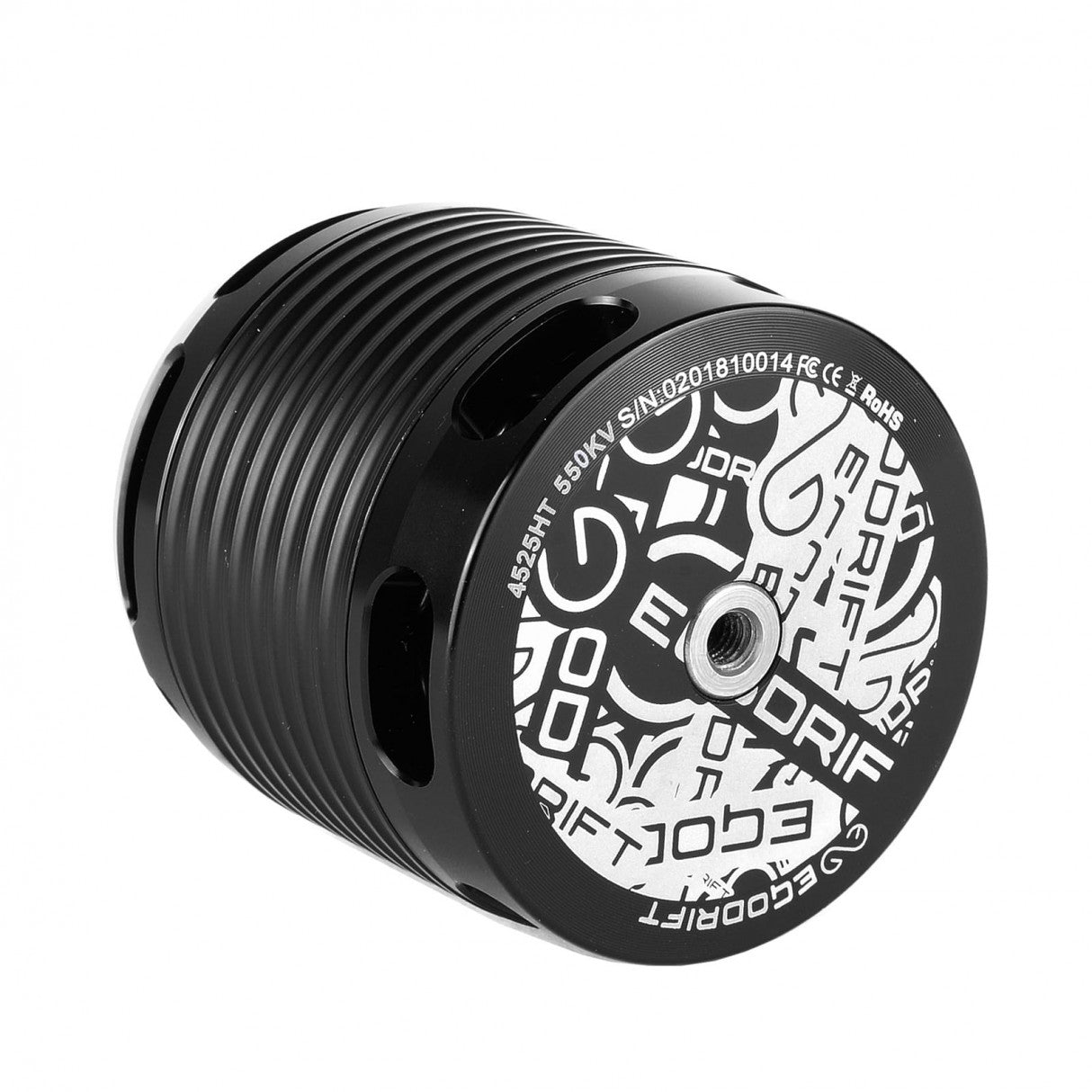

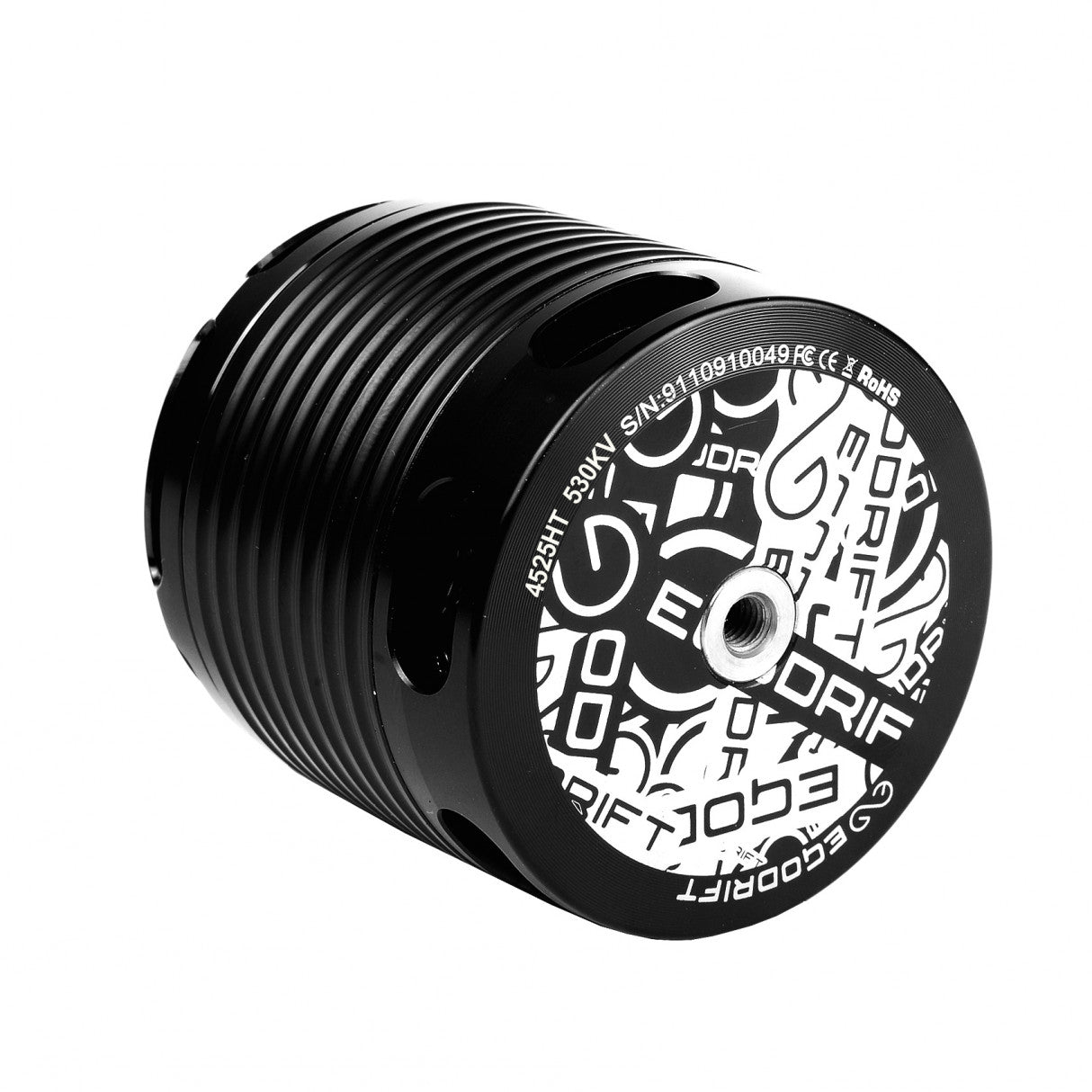

Available winds: 510Kv and 550Kv for your 12S setups, the 530Kv "Jason Russell Edition", and the 428Kv "Logo690 Edition" (successor of the 4525HS Logo 690 Edition, shipped with the fitting 6x55mm shaft installed). The standard winds come with your choice of 6x35mm or 6x55mm shaft, and (as with every EGODRIFT motor) a custom Kv wind is available at no extra cost.
Looking for the newest technology in this class? The Tengu 4726EC Eclipse is this motor’s direct successor, built on our revolutionary 0.1mm lamination stator — and an equally great F3N choice. The 4525HT remains the proven original: mature, cool-running, precise.
Specifications
Specifications
Manufacturer:
All the products in our store are manufactured by us with great care. You knew that, but we get why you clicked the tooltip - and thanks.
EGODRIFT
Stator size:
The stator size of our motors is indicated as a combined number, where the first two digits refer to the stator width, and the last two digits refer to the stator height.
So a 4730 stator size refers to a motor with a stator width of 47 mm, and a stator height of 30 mm.
On large industry models with a stator diameter in exess of 100 mm (like our Jetstream Heavy Duty Series, these numbers are seperated by a dash, like 100-30 or 150-50.
4525
Motor configuration:
The motor configuration gives you information about the number of stator arms/slots (N) and magnetic poles (P). So a 12N10P denomination refers to a motor with 12 arms and 10 poles.
12N10P (10-pole)
Motor weight:
457.5 g
Motor wire:
1.3
Motor Kv:
550Kv
Mounting hole pattern:
This information includes the number of mounting holes, their respective thread size, and the bolt circle on which the holes are placed — shown as the number in brackets.
Example 1: "4x M4(30)"
This means that the motor features four M4 mounting holes, placed on a 30 mm bolt circle.
For extended compatibility with a wide range of models, some of our motors feature a combination of different mounting hole sizes and/or bolt circles. In this case, the information is shown as follows:
Example 2: "2x M4(30) + 2x M3(25)"
This means that the motor features two M4 mounting holes placed on a 30 mm bolt circle, and two M3 mounting holes placed on a 25 mm bolt circle.
Don’t worry if only two of the mounting holes, opposite to each other, line up with your mounting bracket or motor plate. Using only two screws is perfectly fine — but as with any metal thread, always use threadlocker.
4xM4(30)
Laser Design:
EGODRIFT Stickerbomb
Stator diameter:
45 mm
Stator height:
25 mm
Stator lamination:
0.15mm (+)

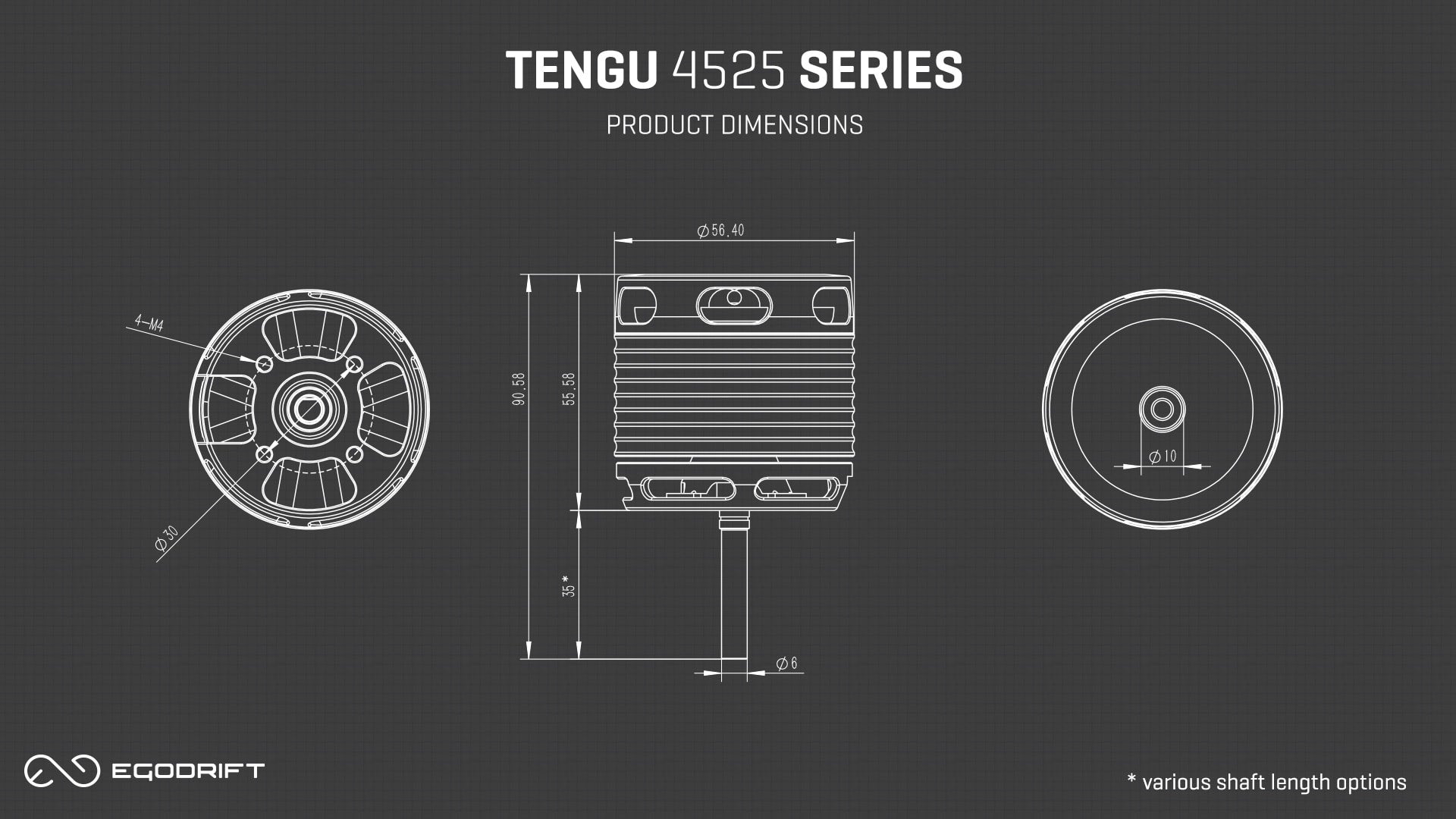

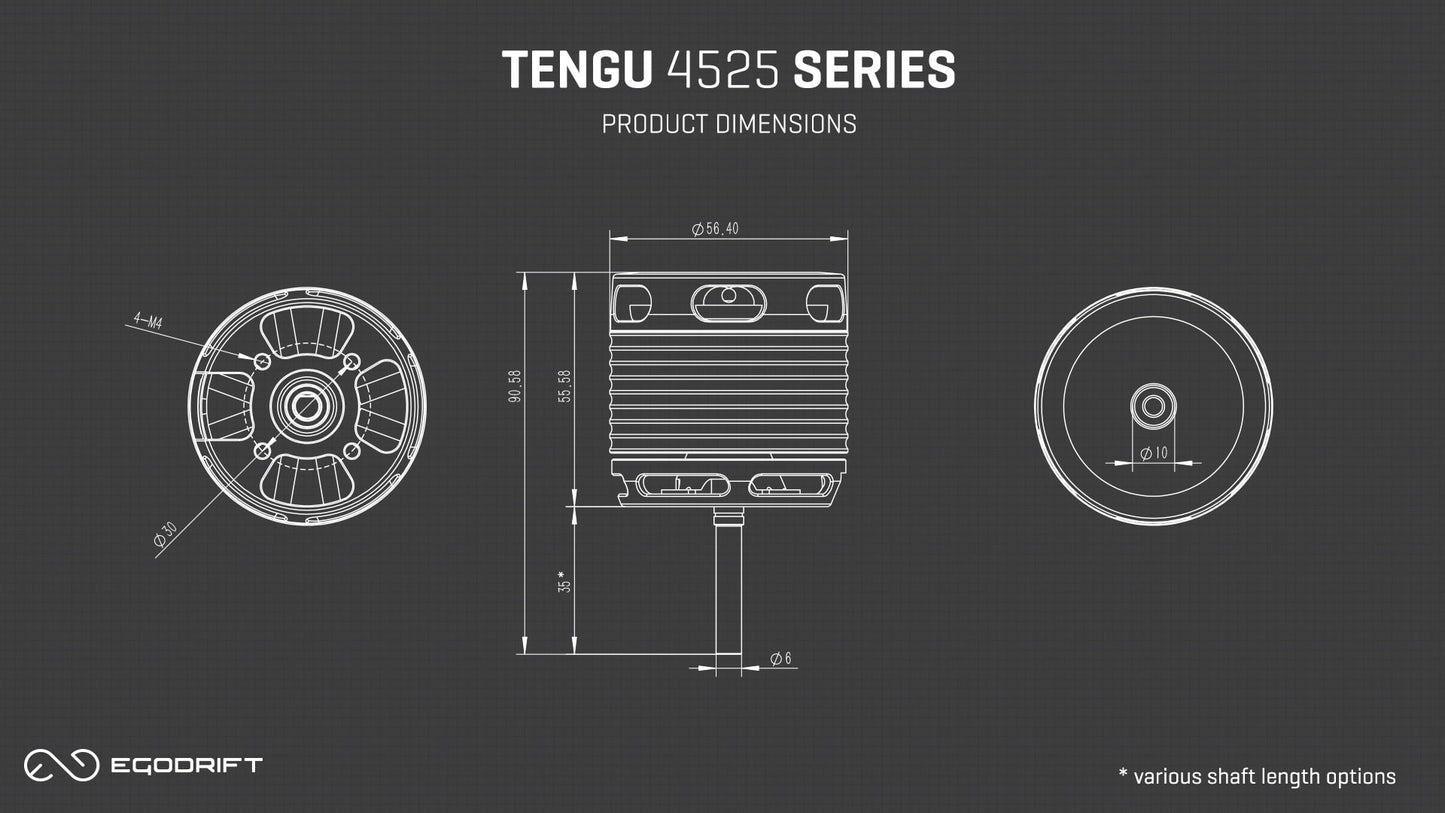

Body length:
This number refers to the legth of the motor body excluding the shaft, so from the mounting plate to the top of the rotor.
55.58 mm
Body width:
This number refers to the width (maximum extension from side to side) of the motor.
When checking the clearance in your frame, this is the number to compare it against.
56.4 mm
Shaft diameter (external):
6 mm
Shaft length (external):
35 mm
Idle current:
3.8A
Maximum current:
140A (Peak: 250A / 2 seconds)
Maximum power:
6720W (Peak: 12000W / 2 seconds)
Internal resistance:
11.5 mOhm
Shaft Compatibility
Shaft Compatibility
The standard 6x35mm shaft length option fits most modern 700 size helicopters such as:
- SAB (Goblin)
- Goosky
- OMPhobby
- SoXos
- XLPower
The longer 6x55mm shaft option is needed for:
- Mikado Logo
- Align
- Gaui
- Various scale mechanics
Tengu 4525HT - 550Kv / 6x35mm
$399.00 USD
In stock
What's in the box
Box contents for
Tengu 4525HT 550Kv / 6x35mm
- Tengu 4525HT Motor / 550KV with 6x35mm shaft
- 3 Pairs Gold-Plated Amass Bullet Connectors
- Mounting screws (generic, please ensure fit to your model)
- Bell Securing / Shaft Replacement Aid Screw
- 2x EGODRIFT Decal Sheets
- Individual Certificate of Authenticity
