EGODRIFT ·SKU 11970

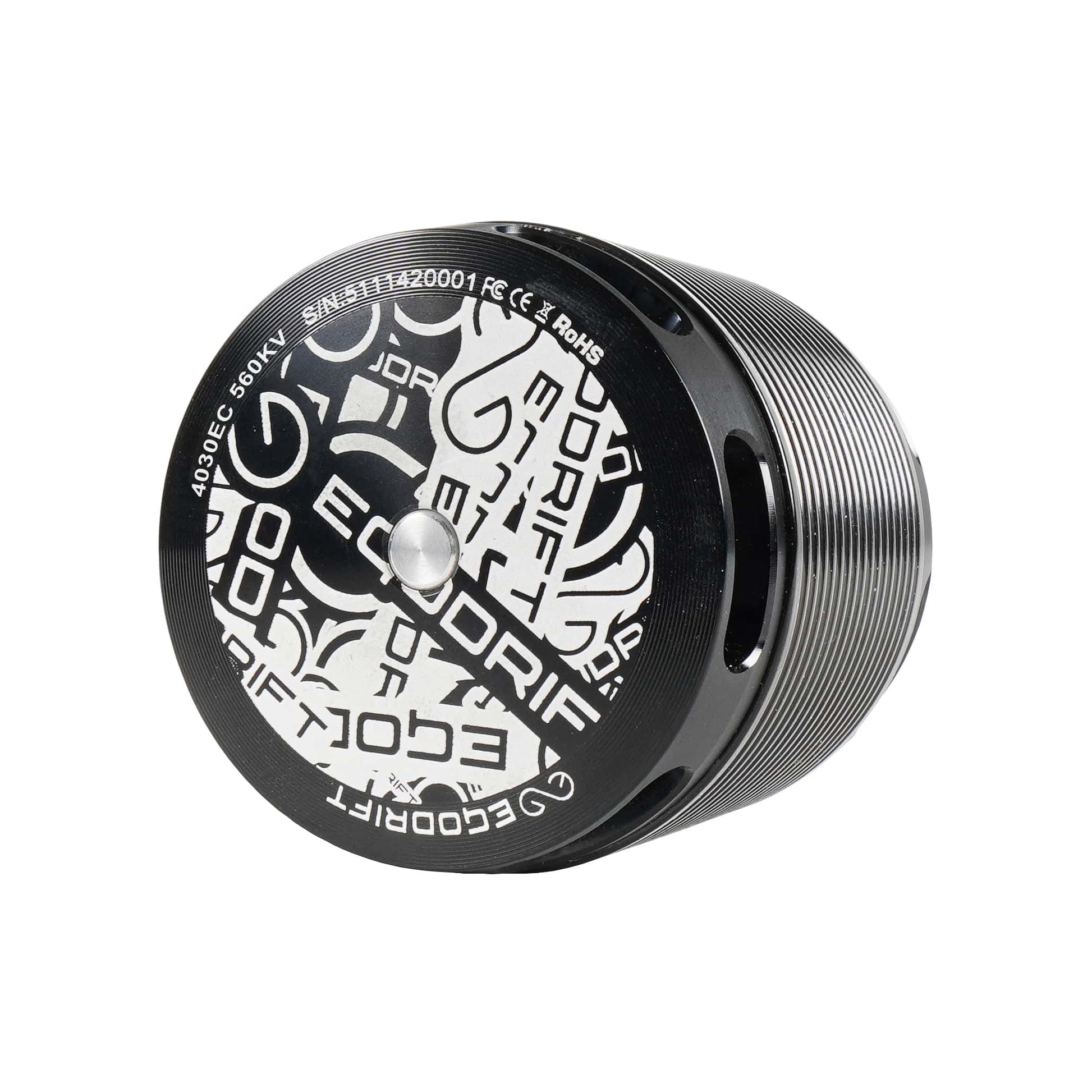

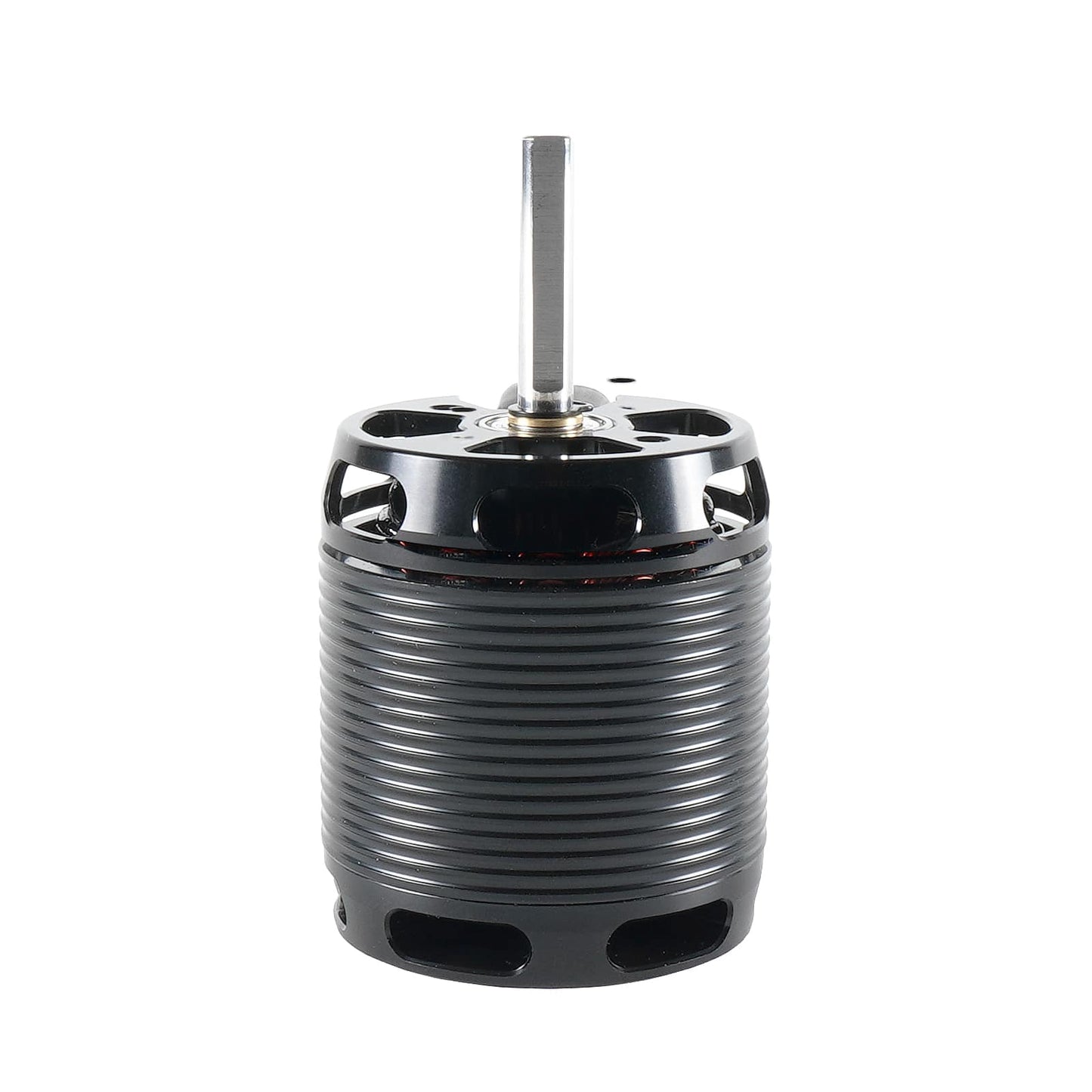

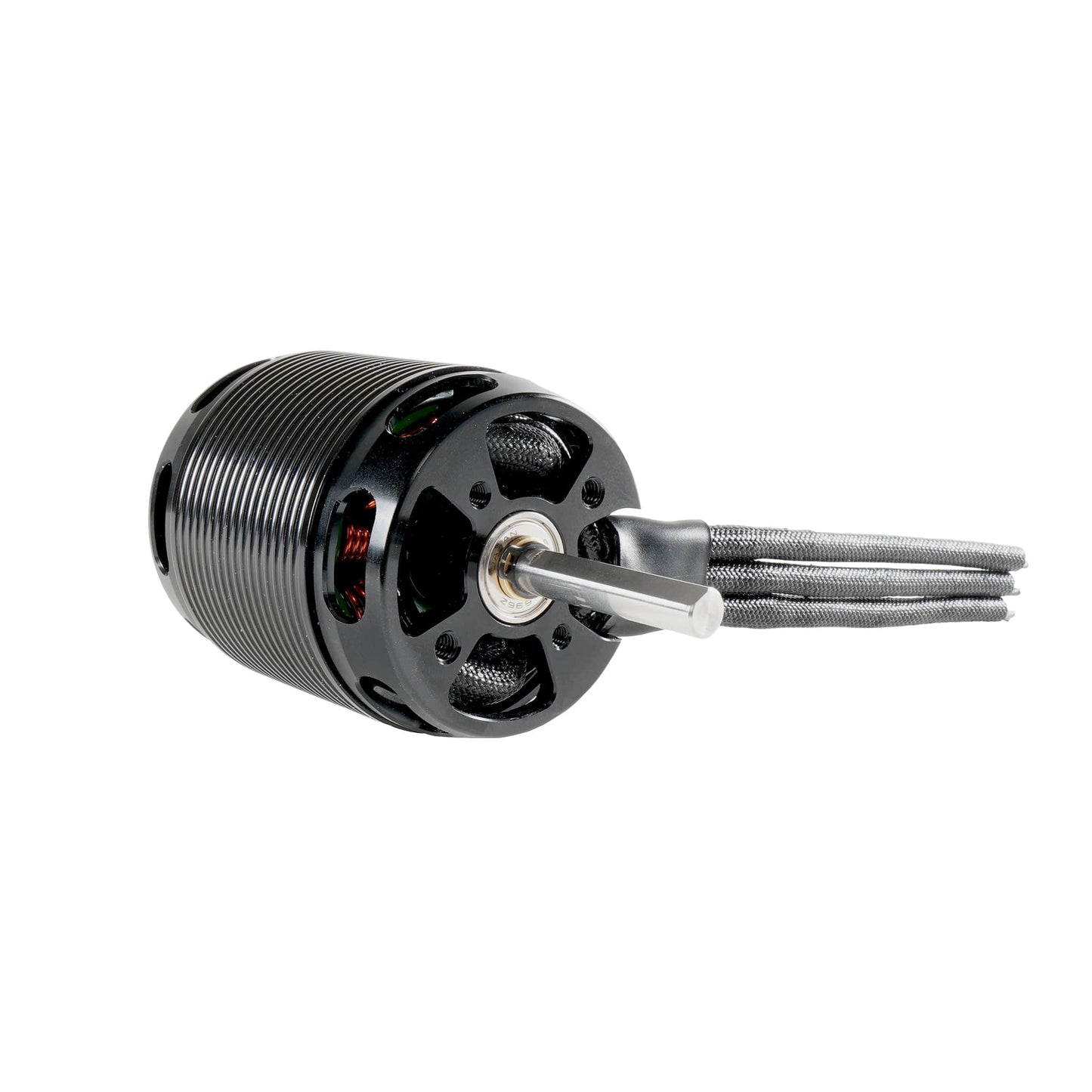

Tengu 4030EC Eclipse
Tengu 4030EC Eclipse
2 reviews
The perfect choice for your 550-580 size helicopter (and up to 610mm blades), featuring—and completely redesigned around—our new 40mm custom stator.
Regular price
$329
Regular price
Sale price
$329
Usually ships within 1–2 days
We'll be in touch with you to ensure the perfect wind for your setup.
If you already have a target Kv in mind, please enter it below:
Quantity
Couldn't load pickup availability
Description
Description
Experience the next step in high-performance brushless power with the EGODRIFT Tengu 4030EC Eclipse Series — a thoroughly redesigned motor that outperforms the Beta generation in every way.
Available Kv Ratings
- 560Kv – Tuned for 12S setups
- 800Kv – "Epic Combo 2.0" on 8S
- 1050Kv & 1150Kv – Ideal choices for 6S configurations
Technical Highlights
- Custom EGODRIFT stator
- Tailored arc magnets for optimal power delivery
- 6mm shaft for further weight reduction

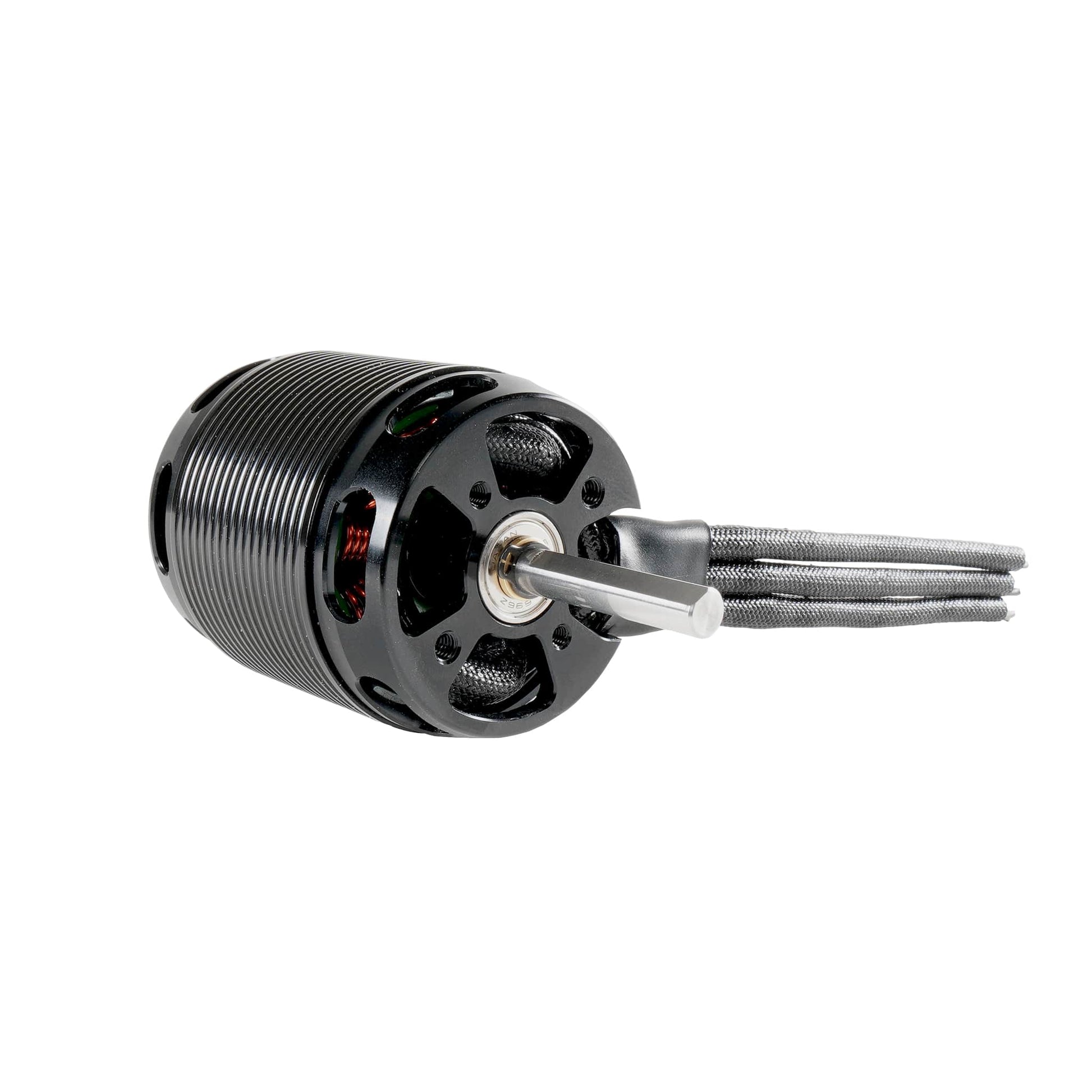

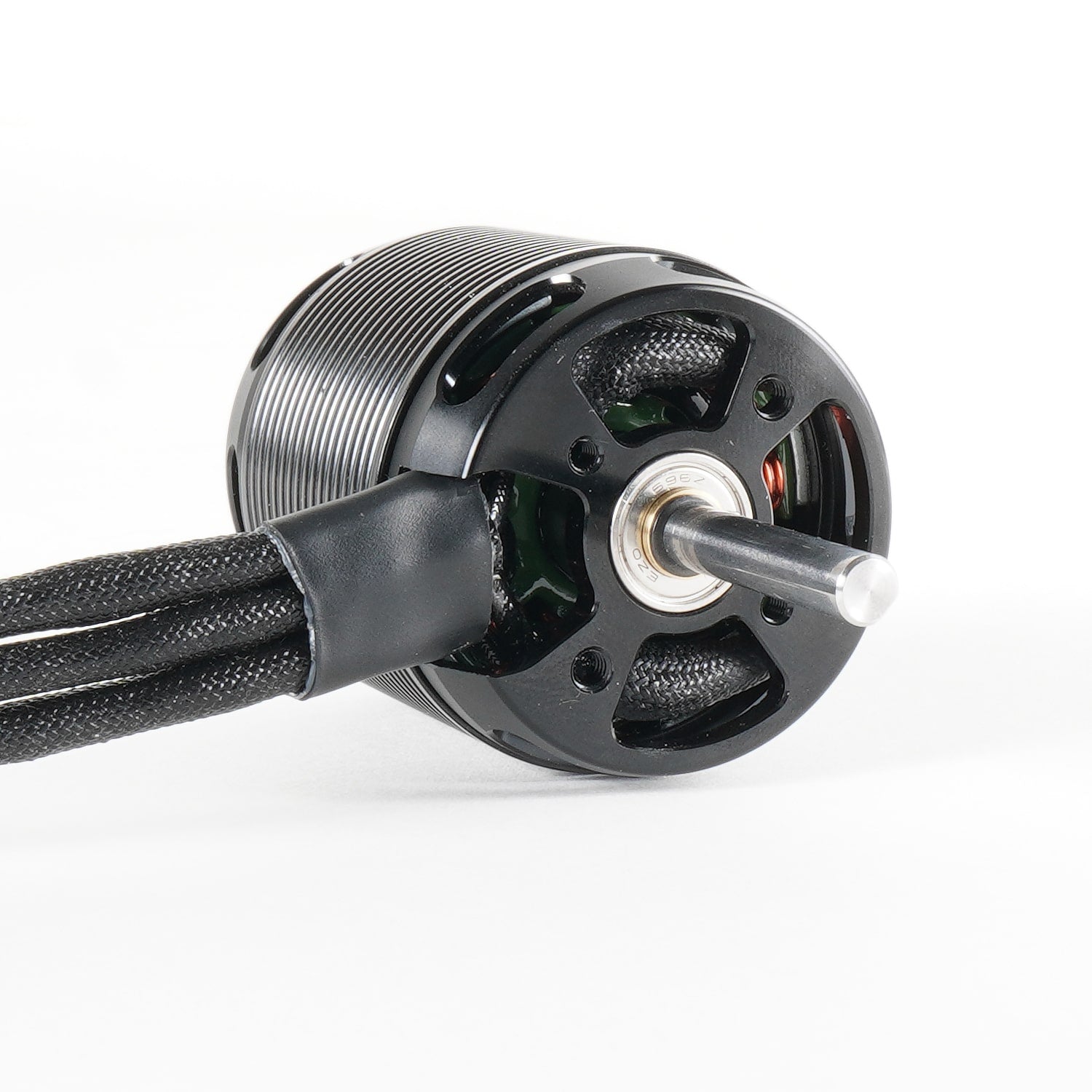

- Base with 2×M4(30)+2xM3(25) mounting holes
Specifications
Specifications
Manufacturer:
All the products in our store are manufactured by us with great care. You knew that, but we get why you clicked the tooltip - and thanks.
EGODRIFT
Stator size:
The stator size of our motors is indicated as a combined number, where the first two digits refer to the stator width, and the last two digits refer to the stator height.
So a 4730 stator size refers to a motor with a stator width of 47 mm, and a stator height of 30 mm.
On large industry models with a stator diameter in exess of 100 mm (like our Jetstream Heavy Duty Series, these numbers are seperated by a dash, like 100-30 or 150-50.
4030
Motor configuration:
The motor configuration gives you information about the number of stator arms/slots (N) and magnetic poles (P). So a 12N10P denomination refers to a motor with 12 arms and 10 poles.
12N10P (10-pole)
Motor weight:
Motor wire:
Motor Kv:
Mounting hole pattern:
This information includes the number of mounting holes, their respective thread size, and the bolt circle on which the holes are placed — shown as the number in brackets.
Example 1: "4x M4(30)"
This means that the motor features four M4 mounting holes, placed on a 30 mm bolt circle.
For extended compatibility with a wide range of models, some of our motors feature a combination of different mounting hole sizes and/or bolt circles. In this case, the information is shown as follows:
Example 2: "2x M4(30) + 2x M3(25)"
This means that the motor features two M4 mounting holes placed on a 30 mm bolt circle, and two M3 mounting holes placed on a 25 mm bolt circle.
Don’t worry if only two of the mounting holes, opposite to each other, line up with your mounting bracket or motor plate. Using only two screws is perfectly fine — but as with any metal thread, always use threadlocker.
Laser Design:
Stator diameter:
40 mm
Stator height:
30 mm
Stator lamination:
0.15mm (+)

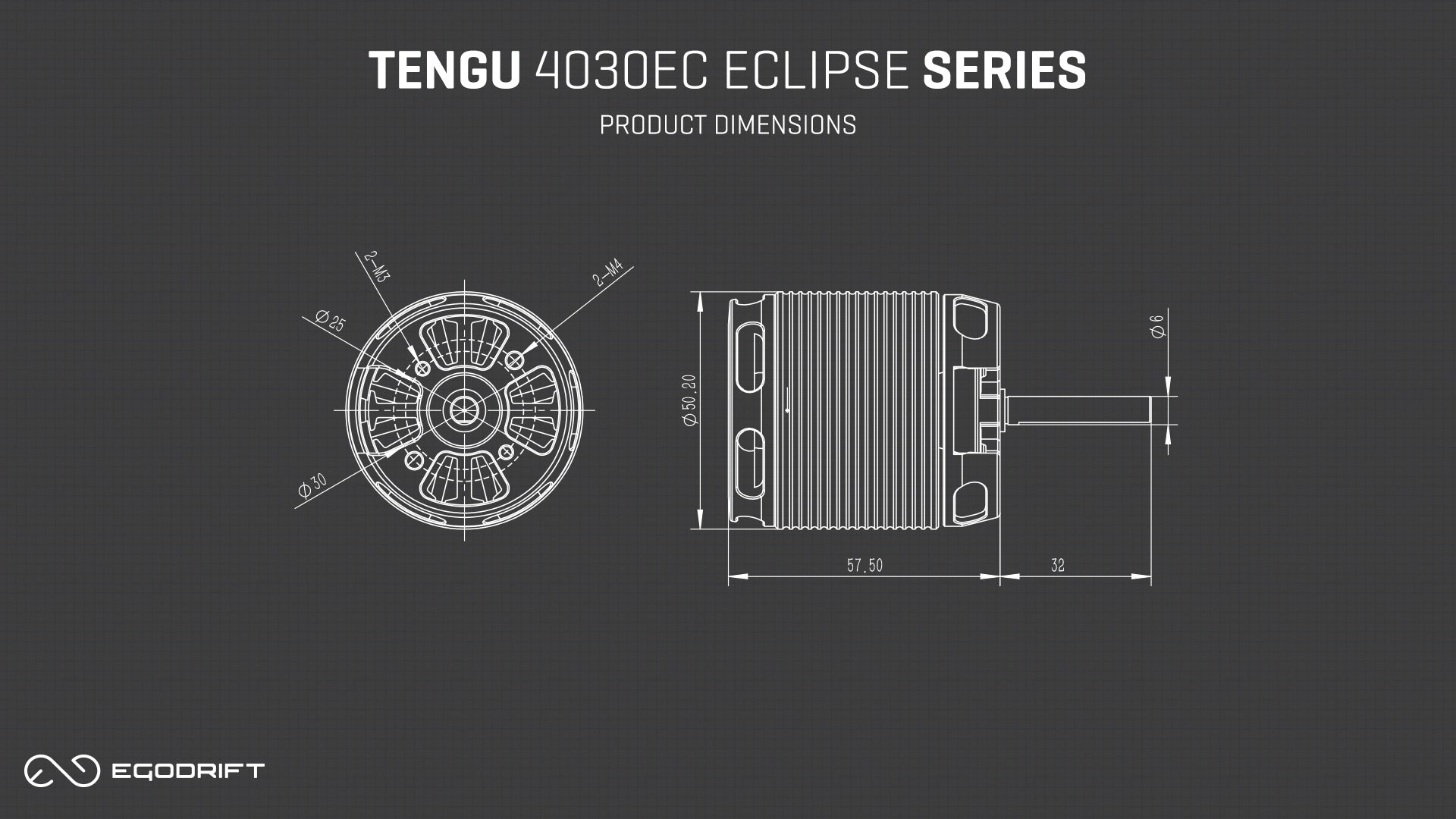

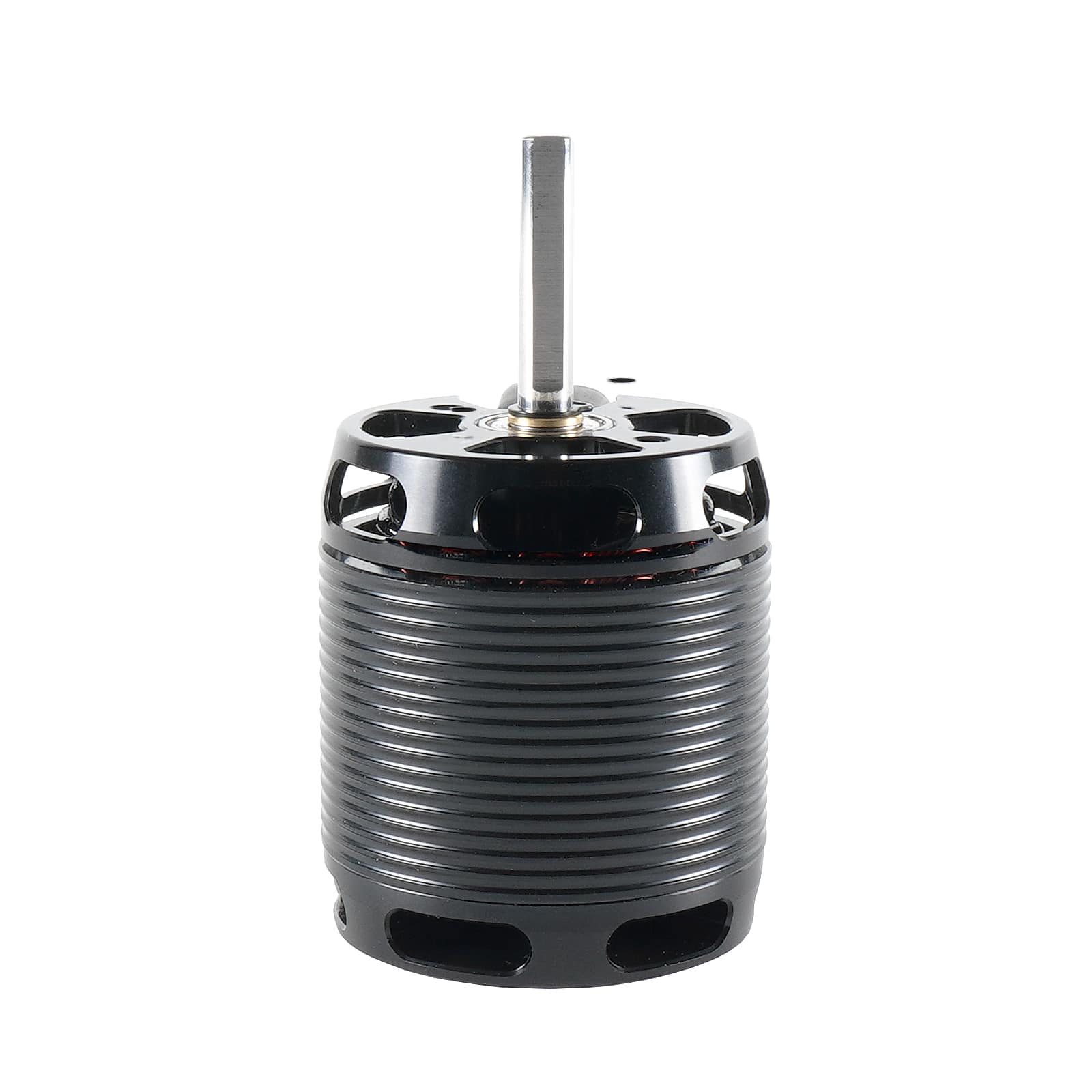

Body length:
This number refers to the legth of the motor body excluding the shaft, so from the mounting plate to the top of the rotor.
57.5 mm
Body width:
This number refers to the width (maximum extension from side to side) of the motor.
When checking the clearance in your frame, this is the number to compare it against.
50.2 mm
Shaft diameter (external):
Shaft length (external):
Idle current:
Maximum current:
Maximum power:
Internal resistance:
Shaft Compatibility
Shaft Compatibility
Tengu 4030EC Eclipse - 560Kv
$329.00 USD
In stock

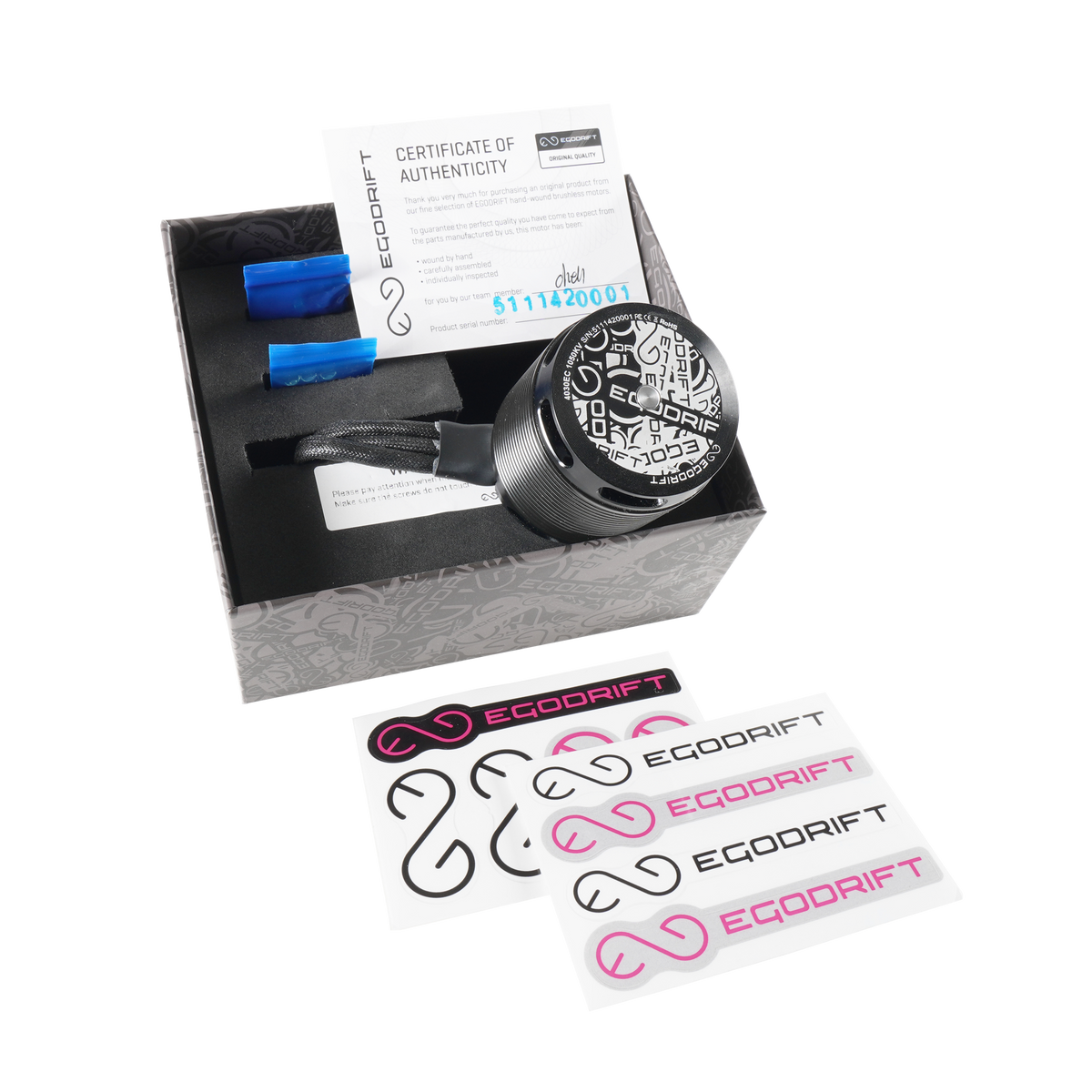

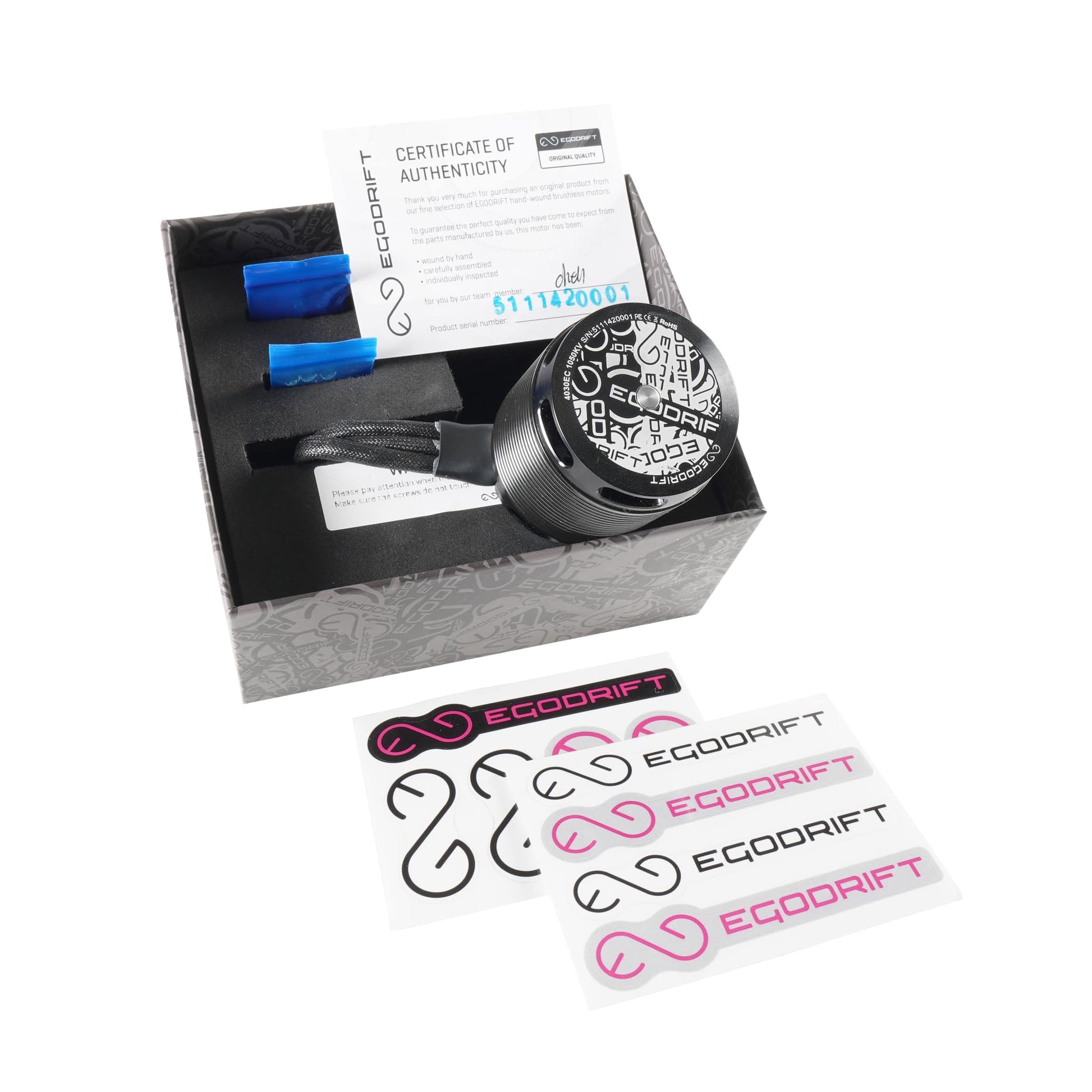

What's in the box
Box contents for
Tengu 4030EC Eclipse 560Kv
- Tengu 4030EC Eclipse Motor with 560Kv (12S) and 6x36mm shaft
- 3 Pairs Gold Plated Amass Bullet Connectors
- Mounting screws (generic, please ensure fit to your model)
- 2x EGODRIFT Decal Sheets
- Individual Certificate of Authenticity
Related items
Related articles
A

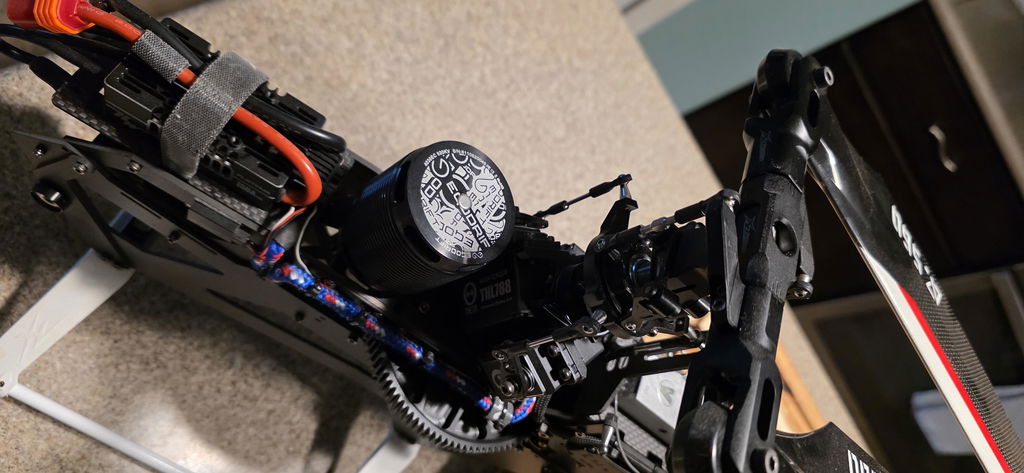

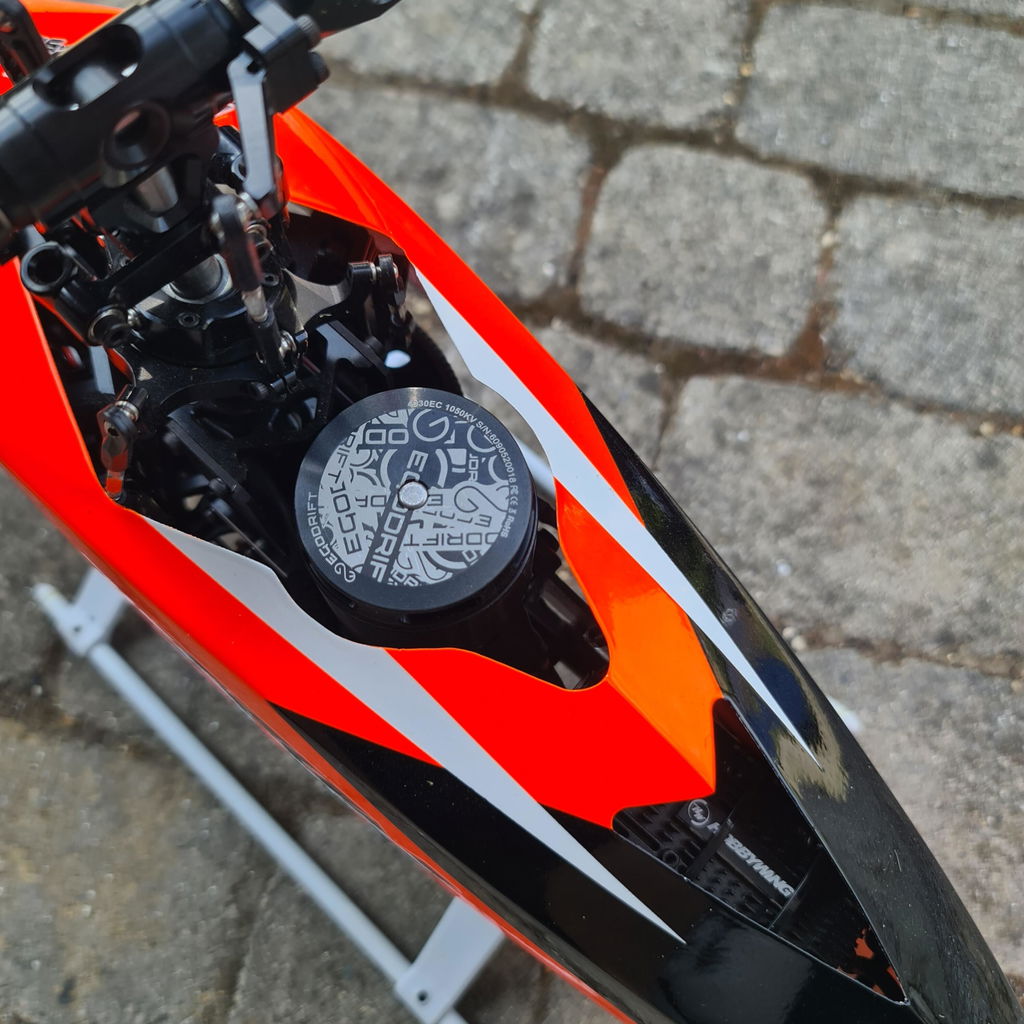

AndyO I have this motor in my XLPower Nimbus 550 as an 8S setup - bags of torque, low current, cool as a cucumber 😎👍
C

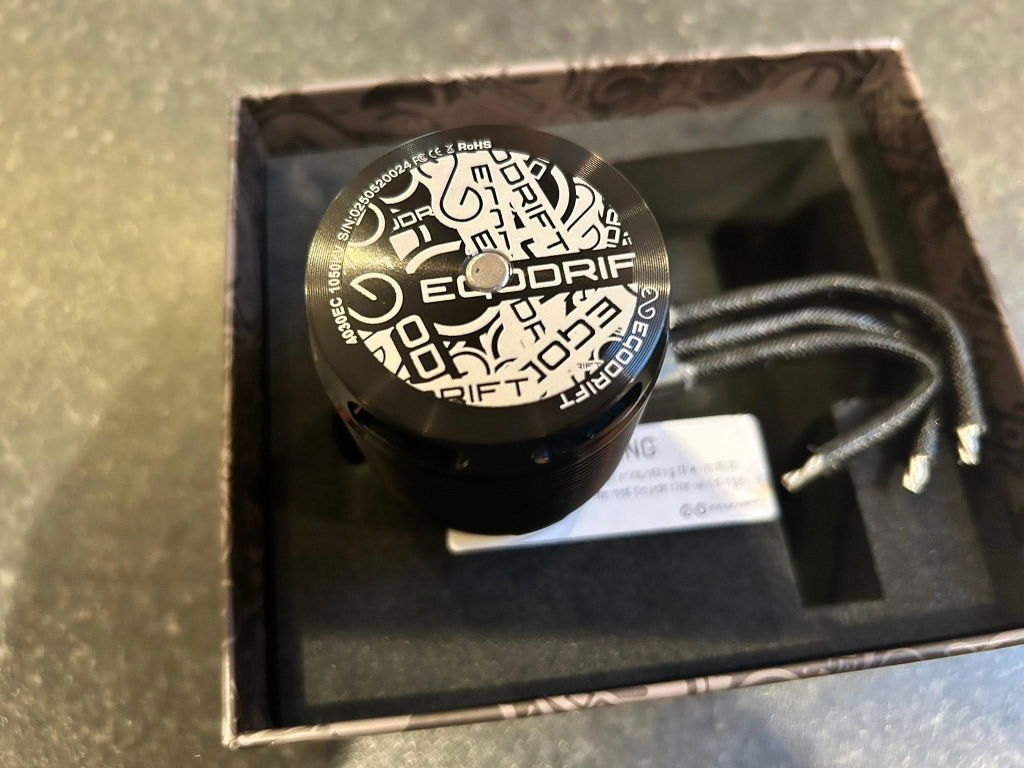

Customer New Egodrift 4030EC in my XLP Nimbus V2 on 6S. All the power you need for crazy 3d, but also quite happy to run nice and efficiently at lower head speeds with great torque 👍
