Legacy ModelsDiscontinued2019-2021

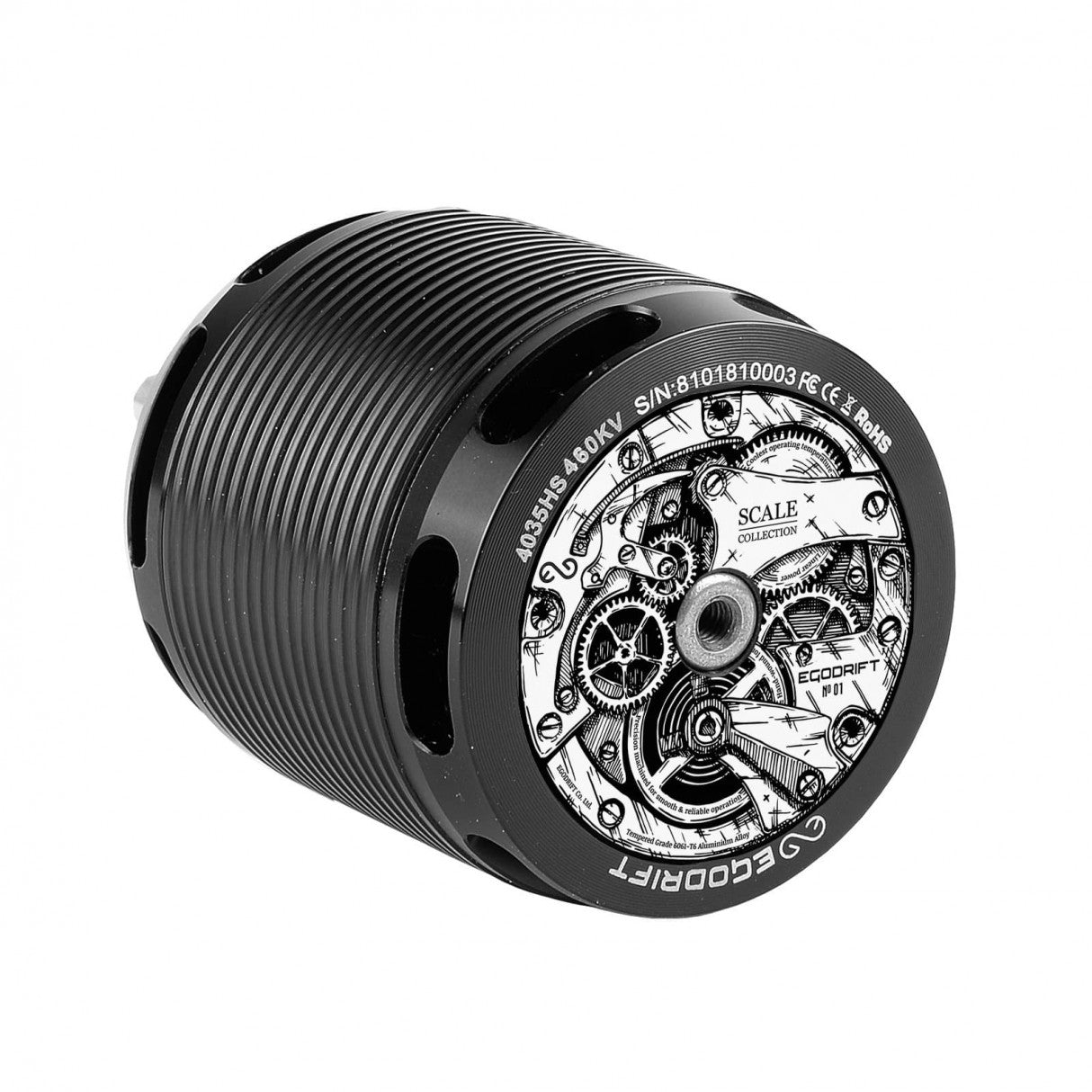

Scale Collection 4035HS

It didn't take long for the first Scale Builders to discover our 4035HS motors, and during the creationof the initial Scale Collection, a dedicated 4035HS was immediately added to the lineup.

This model is no longer part of the active EGODRIFT product range. The information on this page is kept available for setup reference, spare-parts guidance, and compatibility support.

Model history

The low operating temperatures of our 45-sized motors made them a prime candidate for the inclusion in scale builds, but there were quite a lot of mechancs on the market (incl. most Roban models built around the HSM-800, that wouldn't fit a can of that width.

Therefore, when creating the initial Scale Collection back in 2018/2019, we added a dedicated Scale Collection model of the 4035HS to the lineup, adjusted the mounting hole pattern to 4xM4(30) to allow for the mounting of the HSM-800's tripod/bridge-shaped counterbearing support and it soon became the default motor for a lot of Scale applications and Roban kits.

Specifications

This is the text

Shaft compatibility

The Scale Collection 4035HS got a slight shaft length increase over the its Tengu 4035HS brother and came with a 6x40mm external shaft diameter

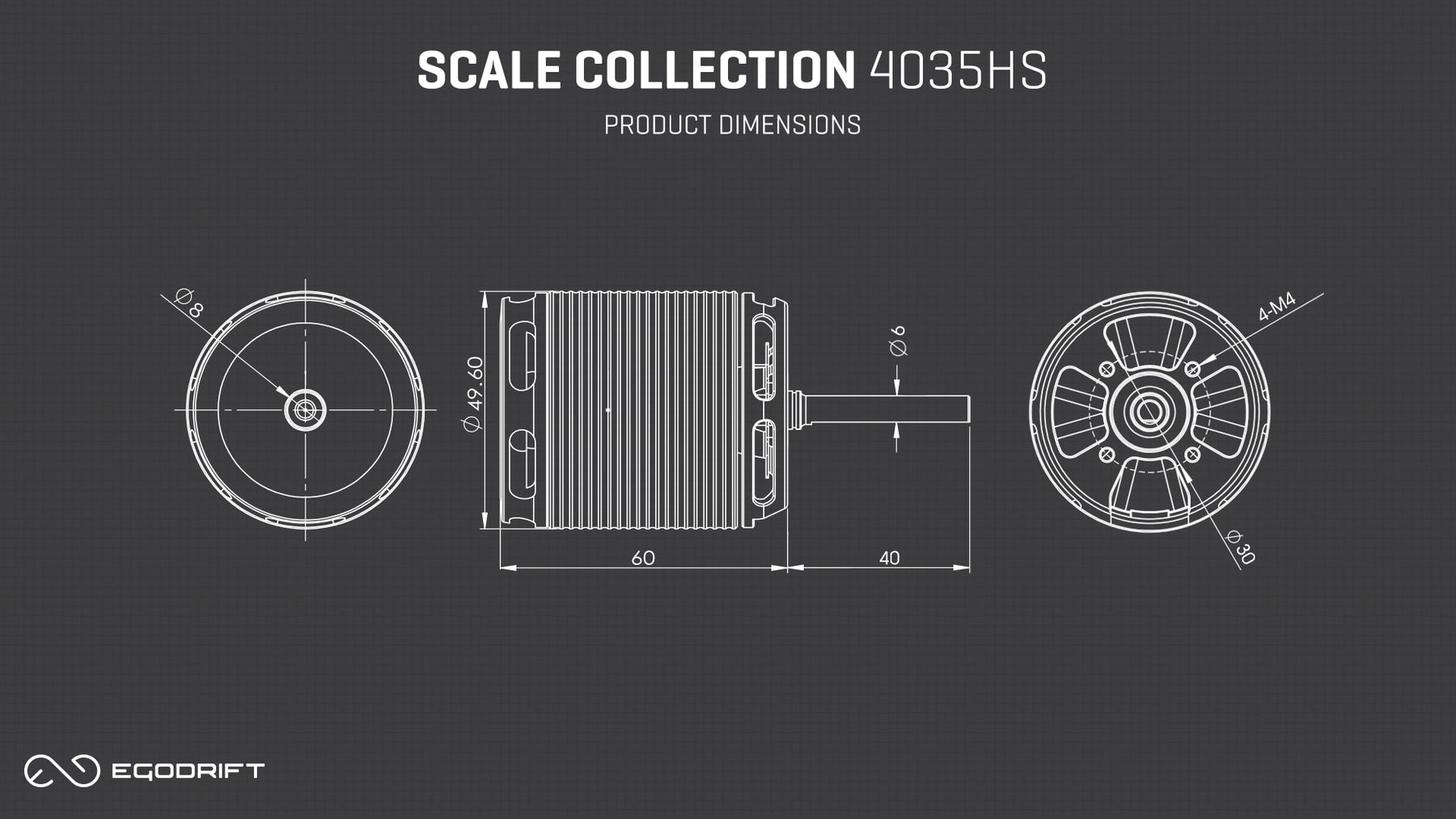

Size drawing
